Wyse WT3125SE Circuit Board

Photographs available are:

• Main board top.
• Main board bottom.
• I/O board.

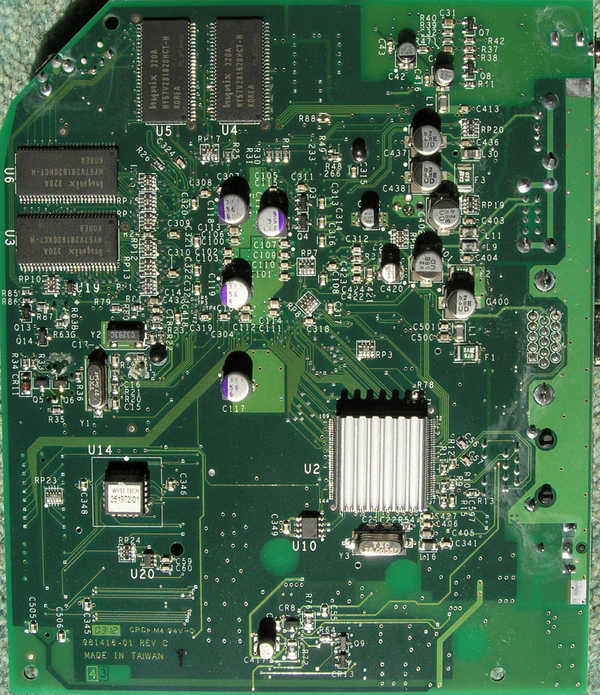

This shows the rear of the main board of the WT3125SE from the bottom. I haven't levered the heat sink off but I assume it is covering the DP83815 ethernet chip.

Any comments? email me. Last update April 2010
