For those that are interested these photographs provide more detail of the hardware.

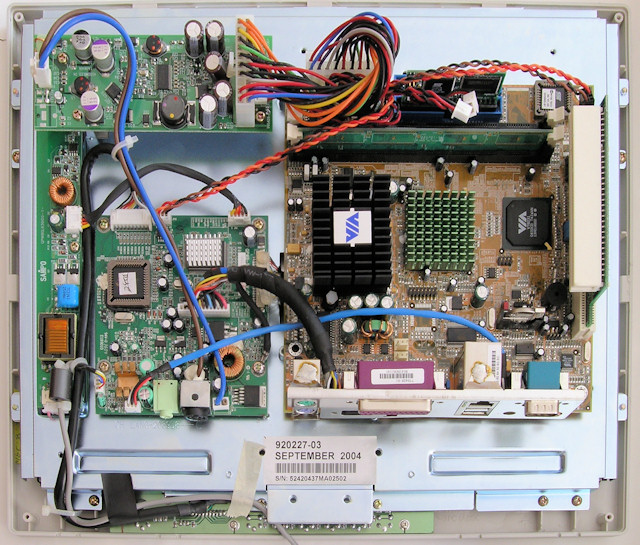

This shows all the electronics after the removal of the metal covers. The Mini-ITX board is to the right.
Top left is the power supply board. The boards to the left are associated with the LCD display. The thin blue
wire from the bottom right of the Mini-ITX board is the
line out, whilst the thicker black wire (bottom left) is the VGA connection. These connections are soldered directly
to the Mini-ITX board.
The missing VGA connector, but you can see the cable soldered direct to the PCB in place of the missing socket.

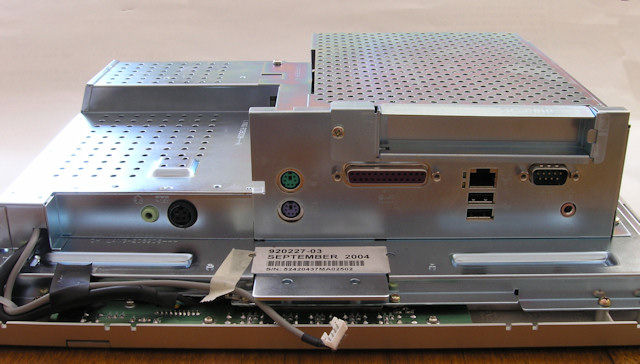

Looking from the bottom with the back cover removed.
