Neoware CA2: Hardware

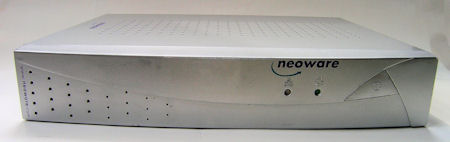

Neoware CA2 thin client

Specifications

For the Neoware thin clients there is a handy document from HP which you can use to identify exactly what you have. In my case the label on the side of the case just says CA2. The HP document tells me that this is an early E100 model with a P620 board type and the Model Type is BH. There is no XX-XX-XX style part number on the unit. From the serial number it was manufactured in May 2003.

Powering it up I find that it's running XP Embedded Verison 2002 service pack 2.

The basic specs are:

Processor
   Type
   Speed
VIA Ezra
800MHz
Memory
   Flash
   RAM
256Mb (max ?Mb)
256Mb (max 512Mb?)
Video
   Chip
   Max resolution
S3 Graphics ProSavage
1600 x 1200 32-bit colour
Ports
   Network
   USB
   Serial
   Parallel
   PS/2
10/100
2 x USB1.1
2
1
Kybd & mouse
Power
   Off
   Running
12 W
~26W
Dimensions
W x H x D29cm x 5cm x 23cm
The case size is identical to the Eon and larger than a lot of thin clients.

Power SupplyCA2 power

Unlike the Eon the CA2 uses an external 12V power supply. The power connector is the same style as used on the Compaq Evo T20 and some Wyse models so there is the possibility of some confusion here as those models run off 5V!

CPU

For those to whom it matters here is some detail from Linux's /proc/cpuinfo

vendor_id:CentaurHauls
cpu family:6
model:7
model name:VIA Ezra
stepping:10
flags:fpu de tsc msr cx8 mtrr pge mmx 3dnow up

PCI

From the linux lspci command:

00:00.0 Host bridge: VIA Technologies, Inc. VT8605 [ProSavage PM133] (rev 01)
00:01.0 PCI bridge: VIA Technologies, Inc. VT8605 [PM133 AGP]
00:07.0 ISA bridge: VIA Technologies, Inc. VT82C686 [Apollo Super South] (rev 40)
00:07.1 IDE interface: VIA Technologies, Inc. VT82C586A/B/VT82C686/A/B/VT823x/A/C PIPC Bus Master IDE (rev 06)
00:07.2 USB Controller: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller (rev 1a)
00:07.4 Bridge: VIA Technologies, Inc. VT82C686 [Apollo Super ACPI] (rev 40)
00:07.5 Multimedia audio controller: VIA Technologies, Inc. VT82C686 AC97 Audio Controller (rev 50)
00:07.6 Communication controller: VIA Technologies, Inc. AC'97 Modem Controller (rev 30)
00:09.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL-8139/8139C/8139C+ (rev 10)
01:00.0 VGA compatible controller: S3 Inc. ProSavage PM133 (rev 02)

Expansion

click for larger image (Click on the picture for a larger version).

Both the Flash memory and the RAM in the CA2 are easily replaceable.

Flash: The flash is a "DiskOnModule" that interfaces via a 44-pin IDE connector. There is also an alternative DiskOnChip DIL socket. (These are at the top right of the picture).

RAM: The board has two sockets that take 168-pin PC100 DIMM RAM. In the photo you can see these at the left-hand side between the heat sink and the power supply.

ISA/PCI: The board carries what looks like a PCI slot into which a small riser board may be plugged. The riser board carries an ISA slot and a PCI slot and allows an expansion card to be fitted within the CA2.

I occasionally get emails from people who have found that their recently purchased CA2 does not have one and wonder if I know of a source - I don't. However, after a recent email (June 2012) I did look a little further. As far as I can see this riser card is identical to the one fitted in the Eon. The CA2's BCOM number is E100. If you Google "neoware eon e100 riser" (or similar) you'll get a number of hits for people who are advertising them. The odds are very much in favour of these being ancient history and stock levels have been zero for years - but you never know. Also don't be surprised if the price is (very) significantly more than you paid for the CA2 in the first place! You may be better off buying another complete CA2 or EON.

CA2/E100/EON riser card




Any comments? email me. Added June 2009    Last update October 2017
