Neoware CA21: Hardware

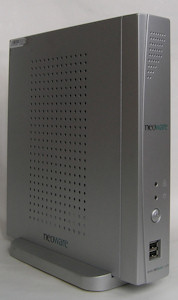

lhs front back

Specifications

It looks like this neoware unit came out after the HP take over as it doesn't carry the usual Neoware XX-XX-XX part number. (Well there is one but has had a plain white put over the top. Through it I can just make out DC-00-00).

The basic specs are:

Processor
   Type
   Speed		VIA Eden
800MHz
Memory
   Flash
   RAM		256M (max ?)
512Mb (max ?)
Video
   Chip
   Max resolution		 ??VIA VT8623 (Apollo CLE266)
1600 x 1200 32-bit colour
Ports
   Network
   USB
   Serial
   Parallel
   PS/2		 10/100
4 x USB2.0
2
1
Kybd & mouse
Power
   Off
   Running		4 W
19W
Dimensions
W x H x D240mmm x 42mm x 222mm

Power Supply

The Neoware CA21 has an integral mains power supply and just requires a mains lead with the usual IEC style socket.

Expansion

board

Both the Flash memory and the RAM in the CA16 are easily replaceable.

The flash is a "DiskOnModule" that interfaces via a 44-pin IDE connector. So far I have not tried anything here.

The RAM is a 200-pin DDR SODIMM. The 512MB SODIMM fitted to my model is a PC2-4200S.

Click on the photo for a larger version.
