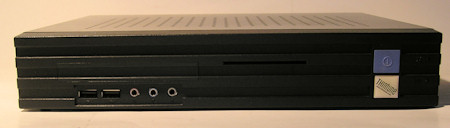

This is identified as an eSeSIX-WLGX01 on the bottom along with a web address of www.eSeSIX.com. The front face carries the model range(?) of Thintune along with a web address of www.thintune.com. Both these addresses are no longer current. In 2005 eSeSIX was acquired by Neoware, which itself was acquired by HP in 2007. The circuit board inside is similar in style to the Neoware Eon.
There is close to zero information available on the web about this model.
The WLGX01 has a 32Mb Compact Flash adapter, 64Mb of RAM and runs a version of Linux.
The basic specs are:
Processor Type
SpeedGeode GX1
266MHzMemory Flash
RAM32Mb (max 512Mb?)
64Mb (max 512Mb?)Video Chip
Max resolutionCS5330A
1280 x 1024 16-bit colourPorts Network
USB
Serial
Parallel
PS/210/100
4 x USB1.1
2
1
Kybd & mousePower Off
Running7W
~19WDimensions W x H x D 29cm x 5cm x 22cm

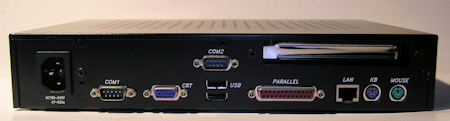

The eSeSIX-WLGX01 has an integral mains supply and the connector is a standard IEC "kettle" style connector. Internally there is a spare 4-pin power connector - which is handy if you want to connect a CDROM or disk drive to the IDE connector.
Both the Flash memory and the RAM in the WGLX01 are easily replaceable.

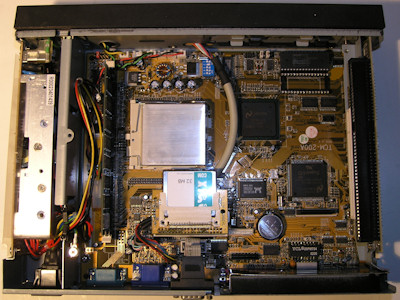

The flash is a "Compact Flash card" that interfaces via a 40-pin IDE connector (lower middle in photo). There is an empty socket next to the BIOS chip (upper right in photo) that may (or may not!) take a DiskOnChip.
The board has a single 168-pin DIMM socket for RAM (PC100 or PC133). The circuit board is TCM-200A Rev3.1. I've tried PC133 128MB and 256MB DIMMs without any problems. The 512MB DIMs are reported as being only 128MB so 256MB would appear to be the maximum amount of memory supported by this revision of the circuit board.
A small riser card is plugged into the edge of the board. This carries an old style ISA connector and a PCI connector.
Any comments? email me. Last update July 2010
