10ZiG 58xxq: Hardware











The 58xxq hardware

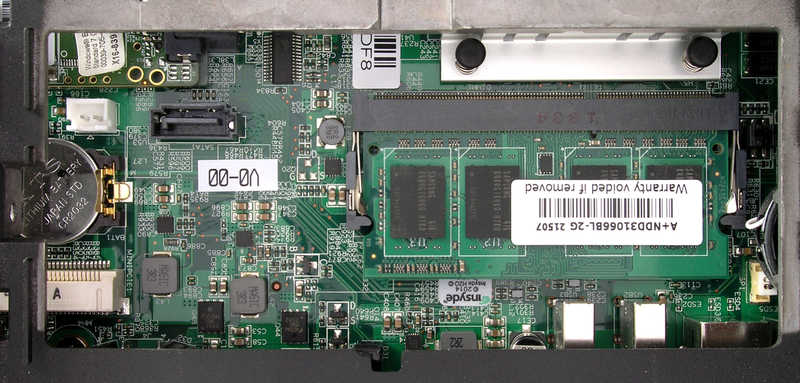

10ZiG 58xxq view of circuit board

A view of the motherboard with the access panel removed. To the right is the SODIMM. To the left you can see the SATA data socket and by that a white socket that could be providing power for anything that uses it. The pin furthest from the SATA socket carries +5V.

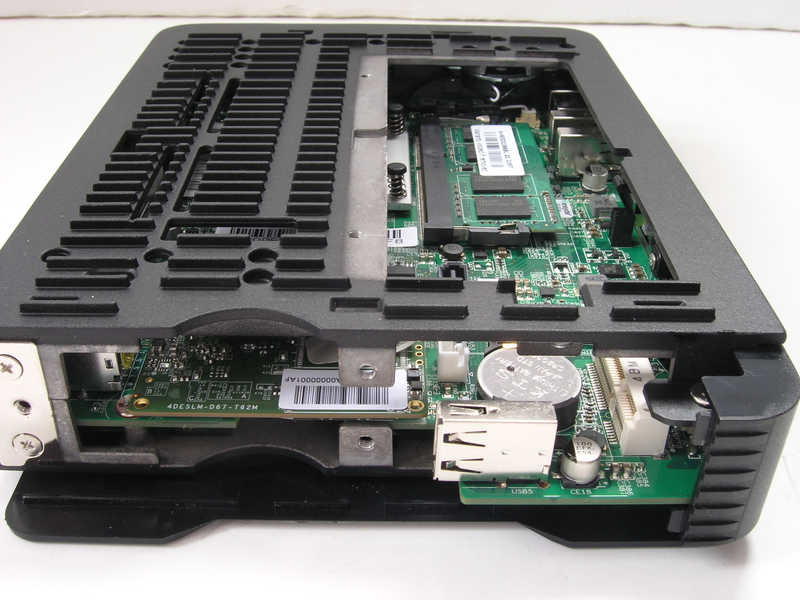

10zig 58xxq pcie side view showing SATA DOM and RAM

An end view of the disassembled unit showing the edge of the SATA DOM (metal retaining bracket has been removed), the PCIE socket and the SODIMM.




Any comments? email me. Added September 2017
