I believe the C92 was launched back in 2015. I couldn't locate any formal announcement but the datasheet carries a 2015 copyright and Google's AI makes the same guess if asked. It is available in two forms: Dual Core CPU running WES7/WES8/COS (COS = Linux in form of Centerm OS) or a Quad Core CPU running Win 10 IOT. Needless to say my version is the dual core version. However the dual core J1800 CPU is slightly more modern than the quad core J1900 and gains 0.4GHz in clock rate.

Specifications

Processor & Graphics
Type/Speed    Graphics	Intel Celeron    J1900 quad-core 2.00GHz (Burst 2.42GHz) or    J1800 dual-core 2.41GHz (Burst 2.58GHz) Intel HD Graphics Bay Trail GT1
Memory

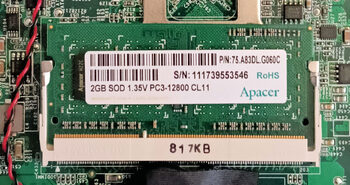

Flash/RAM	Quad-core: 16GB/2GB (Max 128GB/8GB) Dual-core: 8GB/2GB (Max 128GB/8GB)
Ports
Network    USB    Serial    Parallel    PS/2    Video	10/100/1000 1 x USB3.0 (front) 5 x USB2.0 (rear) 0 0 0 1 x DVI-I (1920 x 1200) 1 x Display Port (2560 x 1600)
Power
Power    Plug    Off    Idle    Running	12V 3A (label) Coax 5.5mm x 2.5mm 1W 6.5W 9W
Dimensions
H x W x D (mm)	131 x 31.5 x 167

Note: There is a mini PCIe wireless option. If fitted the rear USB socket count drops from five to four.

Power Supply

The C92 runs off 12V and uses a 5.5mm/2.5mm coax plug. The supplied PSU is a 12V 3A unit.

CPU

The CPU fitted to my example of the C92 is an Intel Celeron J1800 dual core. An alternative is the quad core J1900. Note: This is an assumption of mine. Listed in the Centerm data sheets the processor options are just identified as: 'Intel Quad-Core 2.0GHz' and 'Intel SoC Dual-Core 2.41GHz'.

PCI

00:1a.0 Encryption controller: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Trusted Execution Engine (rev 11)
00:1b.0 Audio device: Intel Corporation Atom Processor Z36xxx/Z37xxx Series High Definition Audio Controller (rev 11)
00:1c.0 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 1 (rev 11)
00:1c.1 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 2 (rev 11)
00:1c.2 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 3 (rev 11)
00:1c.3 PCI bridge: Intel Corporation Atom Processor E3800 Series PCI Express Root Port 4 (rev 11)
00:1d.0 USB controller: Intel Corporation Atom Processor Z36xxx/Z37xxx Series USB EHCI (rev 11)
00:1f.0 ISA bridge: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Power Control Unit (rev 11)
00:1f.3 SMBus: Intel Corporation Atom Processor E3800 Series SMBus Controller (rev 11)
01:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)

Expansion

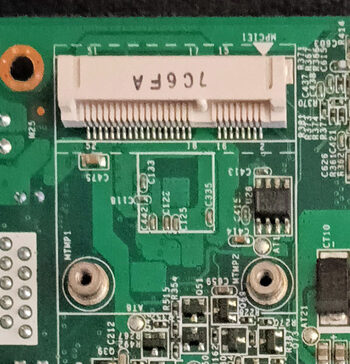

WiFi: There is a blanking plug at the top of the back panel where a WiFi aerial can be fitted. I do not know how the WiFi option is engineered but the data sheet does say the number of back-panel USB ports drops from five to four with the WiFi option.

Battery: I assume there is a backup battery located on the rear of the circuit board. Squinting through the cover I did spot some red/black wires that could be part of a plug-in battery.
