HP t630: Hardware

HP t630 Thin Client

The HP t630 was launched in August 2016. Initially I didn't have one and the information presented here came from HP's publicity material and from Emma who did have one.

Specifications

Processor & Graphics
   Type
   Speed
   Graphics
AMD GX-420GI SOC: quad-core APU
2.0-2.2GHz
Radeon R7E graphics
Memory
   Flash
   RAM
8GB/16GB/32GB/64GB/128GB
4GB/8GB/16GB/32GB
Ports
   Network
   USB

   Serial
   Parallel
   PS/2

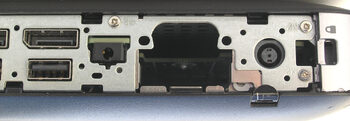

   Video Ports
   (Optional)
10/100/1000
4 x USB2.0 (2 front, 2 rear)
3 x USB3.0 (2 front, 1 internal)
1
0
2 (Kybd and Mouse)
2 x Display Port: Resolution 3840 x 2160 @60Hz
1 x VGA: 1920 x 1200 @60Hz
Power
   Power
   Plug
   Off
   Idle
   Running
19.5V 3.33A (label)
Coax male 7.4mm/5.0mm + centre pin
0.5W
~12W
~28W
Dimensions
H x W x D (mm)240 x 42 x 220 (Excluding Stand)

The embedded operating system is one of:

  • HP ThinPro
  • HP Smart Zero Core
  • Windows Embedded Standard 7E
  • Windows 10 IoT Enterprise

Power Supply

The t630 is supplied with a 65W 19.5V 3.33A DC supply. The connector is male coaxial connector. According to my micrometer the external diameter of the barrel is 7.4mm, the internal diameter 5mm. I don't what the size is of the recessed centre pin. This is also used by various HP laptops and so a suitable PSU should be easy to find on eBay.

If you don't have an HP PSU/charger and are thinking of using a non-HP PSU see this page.

CPU

The CPU fitted to the t630 is from AMD's Embedded G-Series System-on-Chip (SOC). The one fitted to the t630 is a quad core AMD GX-420GI with Radeon(tm) R7E HD Graphics. As I've found before with some AMD SOCs used in thin clients, neither Google nor the search engine on AMD's own site can find any mention of the GX-420GI in any AMD documentation. However HP's t630 datasheet does say:

"This HP version of AMD's 3rd Generation AMD Embedded G-Series SoC (GX-420GI) has enhanced features over the generic version (GX-417GI) documented on the AMD website."

...but doesn't indicate what the enhancements are.

In March 2022 I heard from Robert who sent me this link: https://en.m.wikipedia.org/wiki/List_of_AMD_accelerated_processing_units

vendor_id :AuthenticAMD
cpu family :21
model :96
model name :AMD Embedded G-Series GX-420GI Radeon R7E
stepping :1
flags :fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm constant_tsc rep_good acc_power nopl nonstop_tsc cpuid extd_apicid aperfmperf pni pclmulqdq monitor ssse3 fma cx16 sse4_1 sse4_2 movbe popcnt aes xsave avx f16c lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw ibs xop skinit wdt lwp fma4 tce nodeid_msr tbm topoext perfctr_core perfctr_nb bpext ptsc mwaitx cpb hw_pstate ssbd vmmcall fsgsbase bmi1 avx2 smep bmi2 xsaveopt arat npt lbrv svm_lock nrip_save tsc_scale vmcb_clean flushbyasid decodeassists pausefilter pfthreshold avic v_vmsave_vmload vgif overflow_recov

PCI

00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Root Complex
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) I/O Memory Management Unit
00:01.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Wani [Radeon R5/R6/R7 Graphics] (rev 88)
00:01.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Kabini HDMI/DP Audio
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Host Bridge
00:02.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Root Port
00:02.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Root Port
00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Host Bridge
00:08.0 Encryption controller: Advanced Micro Devices, Inc. [AMD] Carrizo Platform Security Processor
00:09.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Carrizo Audio Dummy Host Bridge
00:09.2 Audio device: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Audio Controller
00:10.0 USB controller: Advanced Micro Devices, Inc. [AMD] FCH USB XHCI Controller (rev 20)
00:11.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 49)
00:12.0 USB controller: Advanced Micro Devices, Inc. [AMD] FCH USB EHCI Controller (rev 49)
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 4a)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 11)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Function 0
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Function 1
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Function 2
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Function 3
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Function 4
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 60h-6fh) Processor Function 5
01:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)
02:00.0 Network controller: Intel Corporation Dual Band Wireless-AC 3168NGW [Stone Peak] (rev 10)

Expansion

Flash: The board is designed to take two M.2 SSDs. The primary socket is designed to take M.2 flash modules up to 2280. The secondary socket will accommodate modules up to 2242. In December 2021 I heard from Nick who reported that the M.2 sockets are for SATA SSDs, not NVME.

RAM: There are two on-board sockets to take DDR4 SODIMMs. The datasheet gives the data transfer rate as 1,866 MT/s and the maximum memory as 32GB. Emma fitted two 16GB Crucial parts - CT16G4SFD8266.

In November 2020 I heard from Carl who had successfully tried out two 32GB Crucial parts - CT32G4SFD8266 - to get 64GB of RAM. See the Using tab.

USB: There are a plethora of USB connections in the t630. There are four sockets on the front panel. Two of these are USB2.0 and two are to the USB 3.0 standard. The rear panel carries two USB 2.0 sockets. Finally there is a single internal USB 3.0 socket.

Note: The t630 will not boot from the internal USB port.

HP t630 internal USB socket

There is a reasonable amount of space around the internal USB socket. I would imagine most normal USB pen drives will fit. A 'novelty' one might be a different matter.

WiFi: The t630 has a M.2 2230 slot for a wireless network card. This may be fitted with one of: Intel Dual Band Wireless-AC 3168 Wi-Fi/Bluetooth combo adapter or a Intel Dual Band Wireless-AC 8260 Wi-Fi/Bluetooth combo adapter

Click here for a larger photo of the motherboard.

Additional photos

M.2 flash on the HP t630

The photo shows where the two flash SSDs are fitted on the t630. The silk-screen printing on the board makes it obvious where the various sizes of the M.2 drive fit.

USB and WiFi on the HP t630

Adjacent to the flash M.2 sockets is the USB3.0 connector for an internal flash drive and the M.2 connector for the WiFi/Bluetooth board.




Any comments? email me. Added June 2020    Last update December 2021
