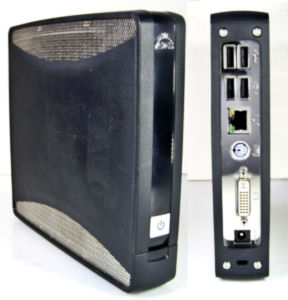

As can be seen in the photographs my Igel D200 came without any mounting foot. The datasheet does say:
"CAUTION: Standard deployment of the device is in vertical position, horizontal deployment only supported with optional rubber feet!"

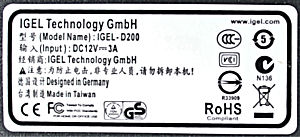

The unit carries a label identifying it as a D200. A (rare) data sheet on the D200 identifies it as belonging
to the Igel UD2 series. Looking at the end-of-life list there is mention of:
As far as I can determine the UD2 (Generation 2) is the D200 with a 400MHz or 500MHz processor whilst the UD2 (Generation 3) is the D210 which has a VIA Eden ULV 1GHz CPU, VIA Vx855 chipset, 2GB of flash and 1GB of RAM.
Note: A data sheet I found on the D200 lists it as having a 400MHz processor. I ended up buying a batch of four. Three of these have a 400MHz processor, one has a 500MHz processor. It looks like IGEL uprated the CPU at some point, but nothing I can see externally can let you find out which you have other than powering it up. The BIOS in the 400MHz units is dated 10/23/2008 whilst that in the 500MHz unit is dated 07/08/2010.
The D200 reached end-of-life status in September 2011 and support continued until October 2014.
There is nothing on the hardware that explicitly indicates the date of manufacture, but maybe it is coded into the serial number. The serial numbers of my four begin: 0811... 1005... 1006... 1101... This is not inconsistent with it being YYMM... The last one - January 2011 - is the one that runs at 500MHz.
When my 500MHz D200 boots into the Igel Universal Desktop it identifies itself as an UD2-121 LX
The basic specs are:
Processor Type
SpeedVia Eden
400MHz or 500MHzMemory Flash
RAM1GB
512MB (max 1GB)Video Chip
Max resolutionVia CN700
1920 x 1420 16-bit colourPorts Video
Network
USB
Serial
Parallel
PS/2DVI
10/100
4 x USB2.0
none
none
KybdPower Supply
Plug
Off
Running12V 3A (label)
Coax 5.5mm/2.5mm
1W
15WDimensions W x H x D 41mm x 179cm x 187mm
The D200 in LX form runs Linux.
For those to whom it matters here is some detail from Linux's /proc/cpuinfo
vendor_id : CentaurHauls cpu family : 6 model : 13 model name : VIA Eden Processor 500MHz stepping : 0
00:00.0 Host bridge: VIA Technologies, Inc. CN700/VN800/P4M800CE/Pro Host Bridge 00:00.1 Host bridge: VIA Technologies, Inc. CN700/VN800/P4M800CE/Pro Host Bridge 00:00.2 Host bridge: VIA Technologies, Inc. CN700/VN800/P4M800CE/Pro Host Bridge 00:00.3 Host bridge: VIA Technologies, Inc. PT890 Host Bridge 00:00.4 Host bridge: VIA Technologies, Inc. CN700/VN800/P4M800CE/Pro Host Bridge 00:00.7 Host bridge: VIA Technologies, Inc. CN700/VN800/P4M800CE/Pro Host Bridge 00:01.0 PCI bridge: VIA Technologies, Inc. VT8237/VX700 PCI Bridge 00:0a.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL-8139/8139C/8139C+ (rev 10) 00:0f.0 IDE interface: VIA Technologies, Inc. VT82C586A/B/VT82C686/A/B/VT823x/A/C PIPC Bus Master IDE (rev 06) 00:10.0 USB Controller: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller (rev 81) 00:10.1 USB Controller: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller (rev 81) 00:10.2 USB Controller: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller (rev 81) 00:10.3 USB Controller: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller (rev 81) 00:10.4 USB Controller: VIA Technologies, Inc. USB 2.0 (rev 86) 00:11.0 ISA bridge: VIA Technologies, Inc. VT8237 ISA bridge [KT600/K8T800/K8T890 South] 00:11.5 Multimedia audio controller: VIA Technologies, Inc. VT8233/A/8235/8237 AC97 Audio Controller (rev 60) 01:00.0 VGA compatible controller: VIA Technologies, Inc. CN700/P4M800 Pro/P4M800 CE/VN800 [S3 UniChrome Pro] (rev 01)
The IGEL D200 uses an external 12V supply with a conventional coaxial connector: 5.5mm x 2.5mm.

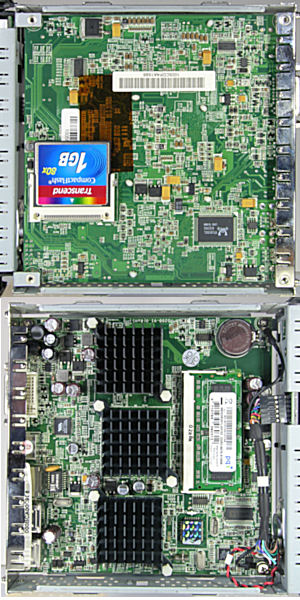

Both the Flash memory and the RAM in the D200 are easily replaceable.
Flash:The flash memory is a 1GB Compact Flash card plugged into a socket on the rear of the motherboard.
RAM:There is a single 200-pin DDR2 SODIMM socket for the RAM. The 512MB DIMM supplied with the unit is labelled: 512MB DDR2 PC533 CL4 and is manufactured by Transcend. The D200 data sheet says: "DDR2-533 SO-DIMM x 1 (up to 1 GB)"
Click on the photo for a larger image.
