Devon IT TC15: firmware

BIOS

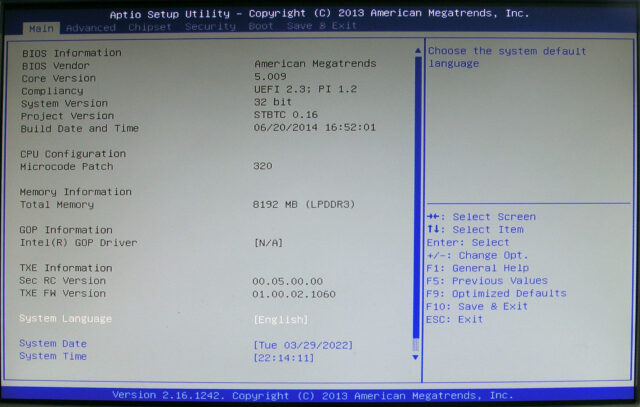

The TC15 is fitted with an American Megatrends Inc BIOS. Hit the F2 key on power-up to get into it. At the top of the screen it identifies itself as Aptio Setup Utility and lists a 'Core Version' of 5.009 with a build date and time of 06/20/2014 16:52:01.

There was no password set on mine. I don't know if there is a default password.

Normally, as they're designed for quite a narrow deployment in terms of function and hardware, the BIOS of a thin client usually does not have very many parameters you can tweak. The TC15 is unusual in that there are actually a huge number of options quite a few of which I have no idea what they are.

Anyone know what a 'PMIC ACPI OBJECT' is? Do I want it enabled or disabled? What's a 'whitt' setting?

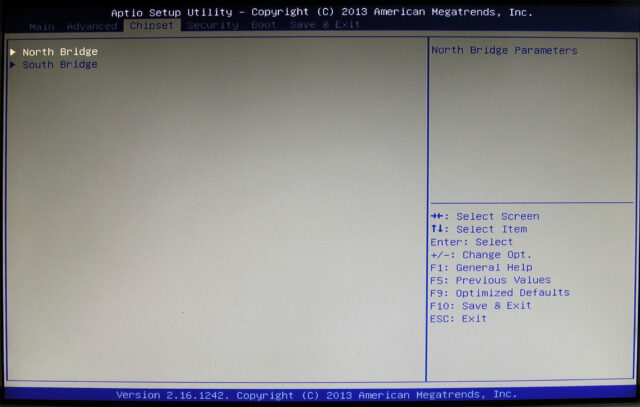

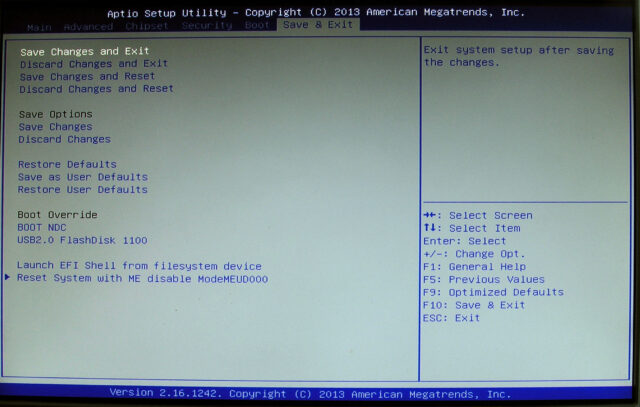

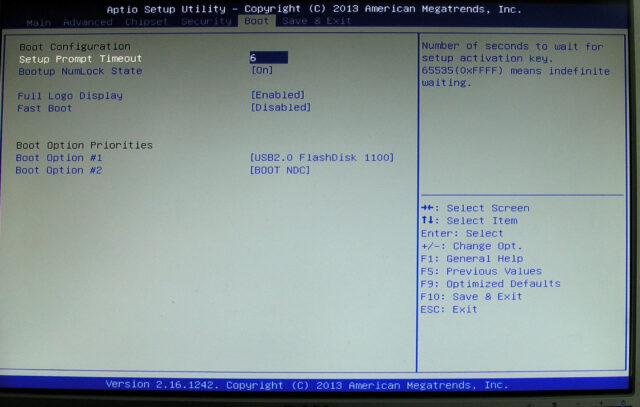

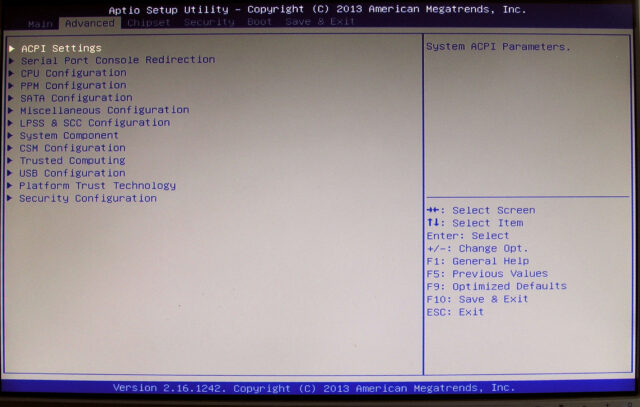

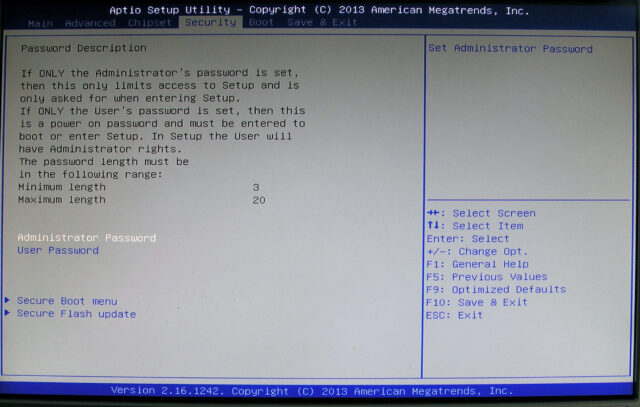

What follows are some of the various BIOS setup screens.

Devon IT TC15 BIOS screen
Devon IT TC15 BIOS screen
Devon IT TC15 BIOS screen
Devon IT TC15 BIOS screen
Devon IT TC15 BIOS screen
Devon IT TC15 BIOS screen




Any comments? email me. Added April 2022
