Praim Compact Dual Core Series: Motherboard













The Compact Dual Core hardware

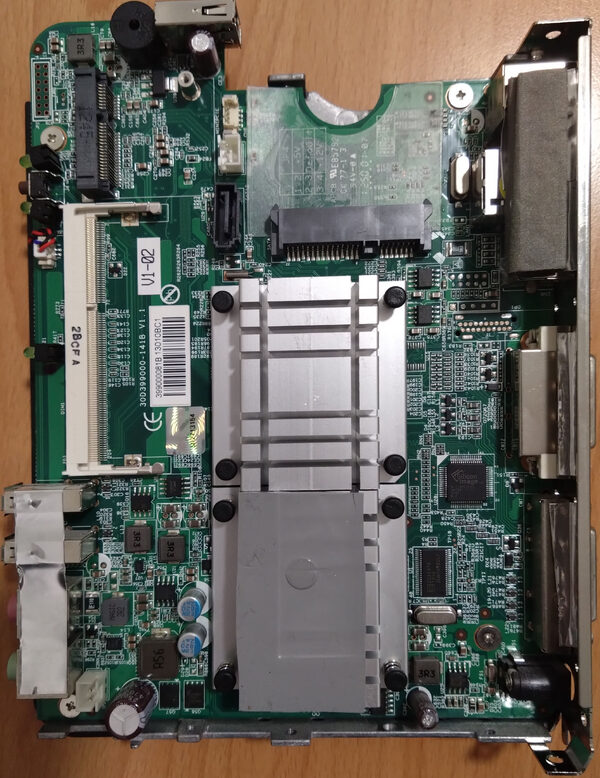

Praim Compact view of circuit board
A view of the motherboard with the access panel removed. At the bottom is the SODIMM. Above that you can see the SATA data socket and above that a white socket that could be providing power for anything that uses it. The pin furthest from the SATA socket carries +5V.

At the top you can see the USB connector for the 'secure compartment'.




Any comments? email me. Added September 2018
