Wyse D10DP: Internal USB port

A comparison between a motherboard with the connections for the internal USB port fitted and one where it is not fitted.

You can see the presence/absence of U2600 (a 7534A15) and some additional components. There is also a component appearing top right.

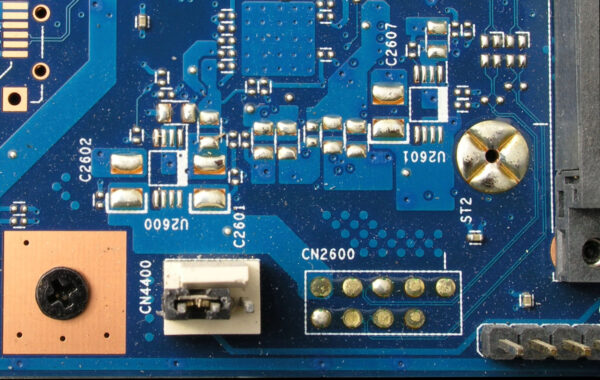

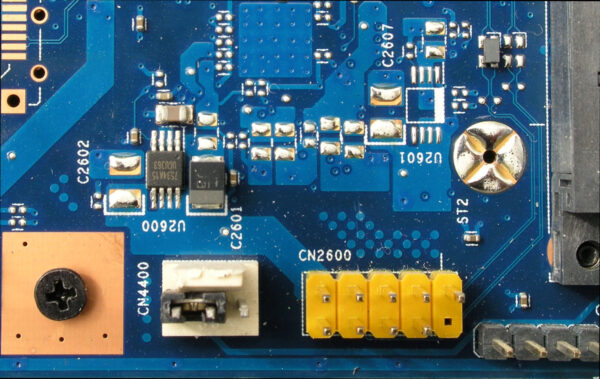

Wyse 5010 without U2600 fitted Wyse 5010 with U2600 fitted
