Wyse 9450XE: Hardware











Hardware detail

For those that are interested these photographs provide more detail of the hardware.

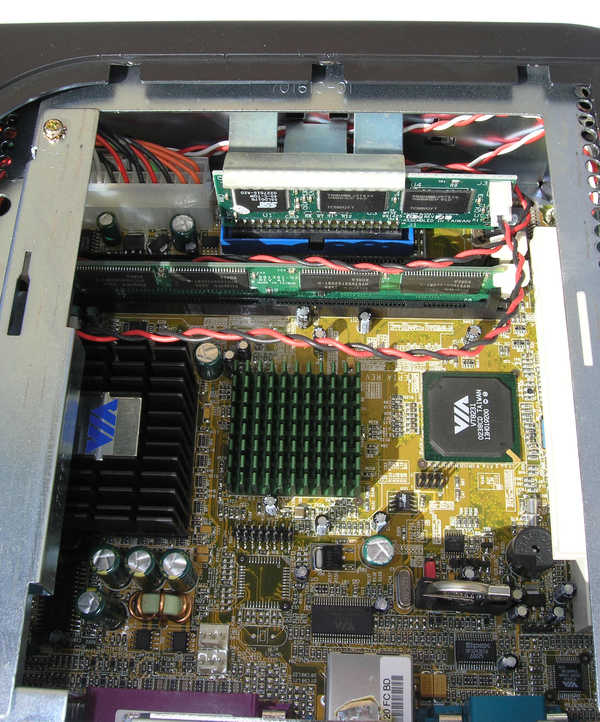

The Mini-ITX board looking from the rear towards the front.

Wyse 9550XE Mini ITX motherboard

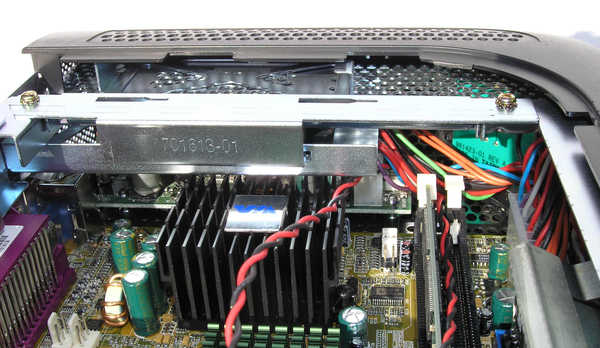

Looking towards the top where the PSU board is located. This is a standard board that converts 12V to the various voltages required by the motherboard.

Wyse 9550XE power supply board

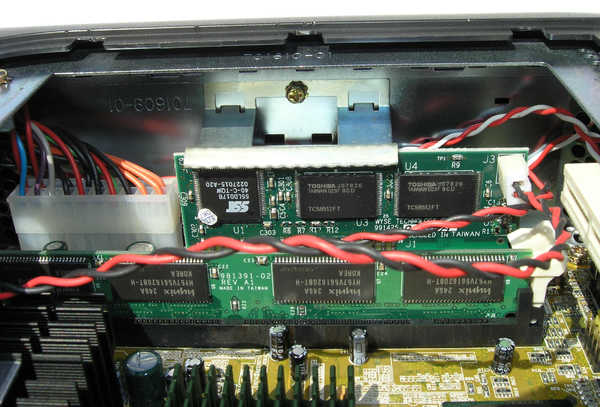

A closer look at the memory. In the top left you can see the convential ATX 20-pin power connector.

Wyse 9550XE memory
