Wyse Dx0Q (5020): Using

Overview

Anders: Various points

Applications

Here are some descriptions of what others have been up to with their Dx0Q.

Ammon: File Server
Daniel: File Server
Simon: MythTV
Steve: File Server
Craig: Media Server
Krzysztof: pfSense firewall

In May 2021 I heard from Steve who had picked up a Dx0Q box for $15 a little while ago.

It is running Debian 10, and I'm using it as a Minecraft server, Half Life 2:Deathmatch server and runs a small website. In addition it is also used for some light network file sharing. It replaced an early 2009 Mac Mini and delivers the goods about two times faster! (and without weird EFI issues that require hacky workarounds.)

As far as the hardware is concerned he had installed 16GB of RAM (2x Timetec 76TT16NUSL2R8-8G DDR3L-1600 as a kit from Amazon) and two SSDs, and the result "...has been running rock solid without any issues ever since."

As far as the SSDs were concerned:

My setup gets inspiration from both Ammon and Daniel's respective setups in that it uses the drive mounting trick on the side-cover from Daniel's but uses the CN1700 power-tap mod from Ammon's.

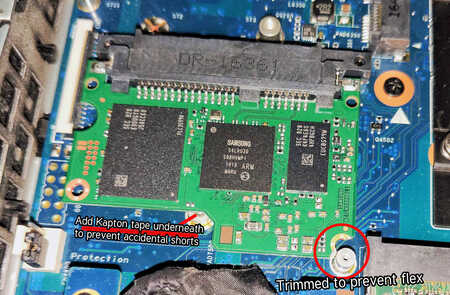

The first SSD I fitted to my setup is a 500GB 860 Evo. I took this out of its case and dropped it into the standard onboard SATA slot. It was slightly over-sized so I added kaptontape underneath it to avoid any shorts and had to carefully trim a corner where it was going to hit a standoff.

SSD fitted to Wyse Dx0Q

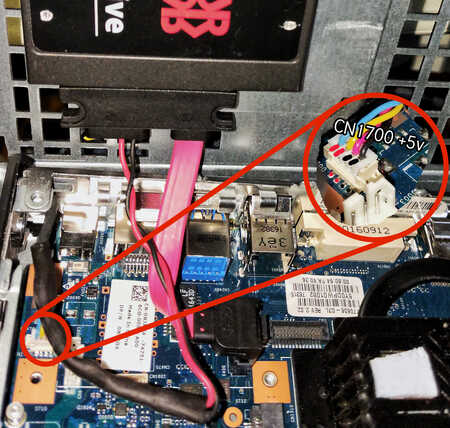

The second no-name SSD was mounted to the cover as per Daniel's approach. To connect this in I used a SATA cable from a junked HP all-in-one. The data cable had a suitable right-angle connector on the end and plugged straight in to other onboard SATA data connector. For the power connection at the board end I adapted a cable off of a laptop PWM fan. This plugged into CN1700 to pick up the necessary 5v supply. (The innermost two pins are ground and the outermost two are +5v).

SSD fitted to Wyse Dx0Q

Steve then moved on to temperatures:

Although you've never mentioned CPU temperatures, Daniel touched on it in his usage scenario.

I would strongly suggest anyone getting one of these replaces the thermal compound under the heatsink. I guess it will depend on how heavily it has been used in the past but in my case I saw an improvement of 8-10°C. When fully loaded I saw a temperature drop from 65°C to about 54°C and when idling it sat around 46-47°C depending on the ambient temperature.

It takes almost no time at all to do this bit of maintenance and in my experience anything is better than the stock paste. I used some of a tube of Arctic Silver Ceramique 2. The thermal conductivity of this is not given on their website, but I can hazard a guess of around 3.9-4W/(mK). This guess is based on my usage of it for the past decade or so. My thin client was relatively dusty when I received it so I can only assume it was a well used example, and the dry paste was a good indication of that fact.

His final comments related to BIOS updates:

As far as your section on the BIOS updates for these, you CAN flash them with the Windows SLIC key-containing BIOS if you so desire, so long as you know what you're doing from Linux. Mine had the SLIC code already present in the BIOS so I was okay in doing this, but there is a certain question of legality of whether or not it should be done to any of these clients that do not already have it in place. it's the utility used in the example that might make a fuss about it, and off-hand I can't remember what I used to eventually update mine, but since it is an EFI BIOS it just did the usual thing of arming the update for the next reboot anyway. When it does update, it clears the CMOS, so if you clear the factory BIOS password from memory, you will need to use the factory password again and clear it a second time as well as re-apply any other changes that were made last time around.

And in summary:

All in all this is a very robust system to play with and it runs admirably for what I'm doing with it. It's the helpful information on parkytowers that made me press the buy button in the first place.
