Wyse 3290: Circuit Board

Click for views of the 3290 Circuit board and the 3030 LT circuit board

A larger view of the top of the 3290 circuit board

Inside the Wyse 3030

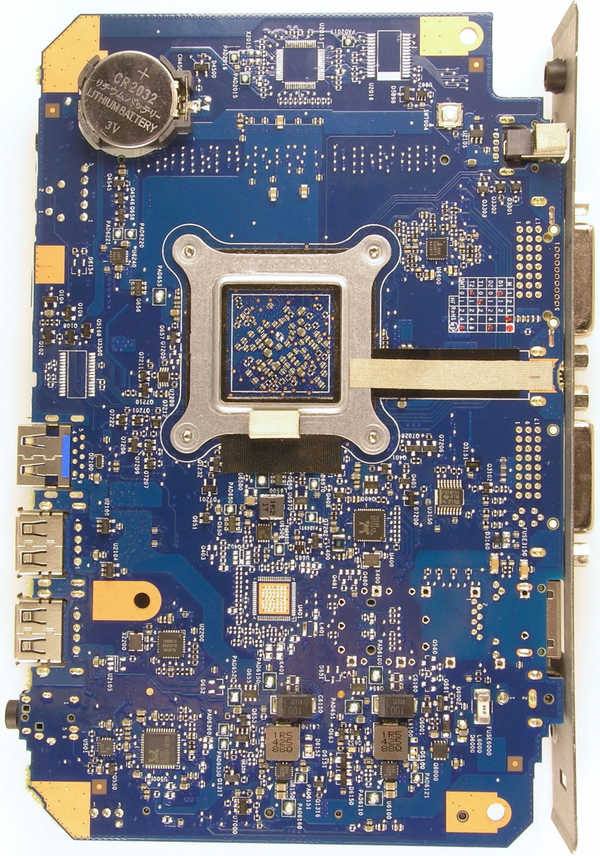

...and a larger view of the bottom the 3290 circuit board Inside the Wyse 3030

Comparison between the 2014 and 2016 version. (2014 version is on the left).

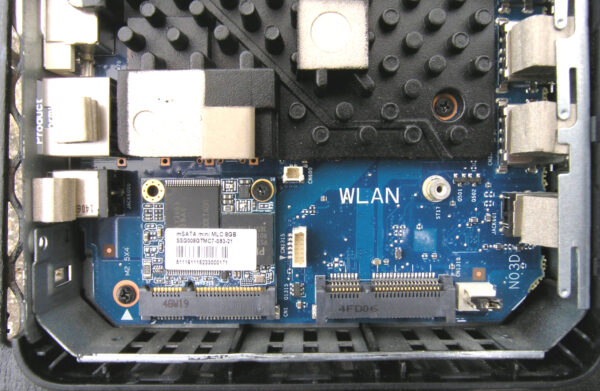

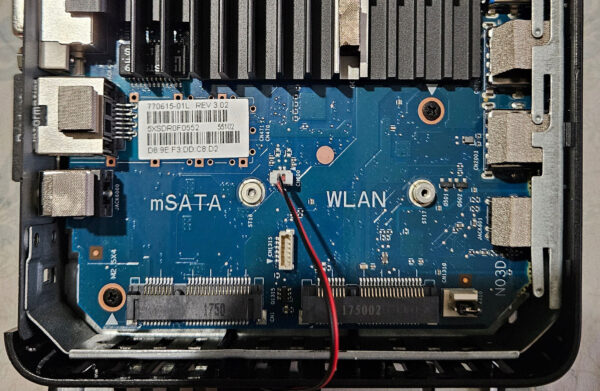

Wyse 3290 from 2014 Wyse 3290 from 2016

With the 2016 version the heatsink is about 18mm shorter. Use the slider to see the difference between the two. (The photographs come from different cameras/lenses/focal lengths so offer slightly different views of the two circuit boards but you should get the idea).




Any comments? email me. Added November 2019    Last update May 2023
